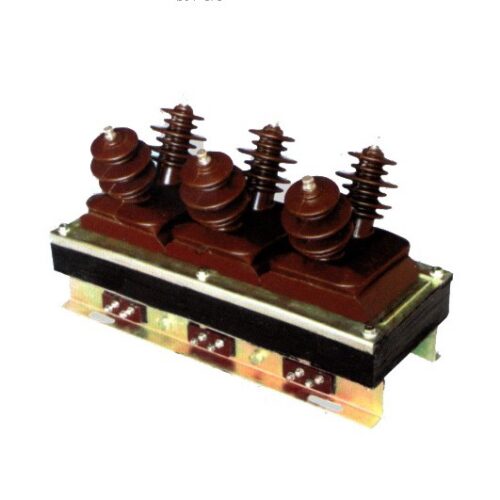

4 Common Causes of 10kV Three-Phase Five-Pole Voltage Transformer Failures and Solutions
Causes of Burnout
1.1 Quality Concerns
The internal quality of the voltage transformer is one of the most critical factors contributing to failure. Transformers with substandard components or poor manufacturing processes are more prone to internal defects, such as overheating or insulation breakdown, which can lead to burnout. Poor quality materials or design flaws in the manufacturing process increase the likelihood of premature failure. Five-Pole Voltage Transformer Failures.
Environmental Factors
The operating environment of a 10kV three-phase five-pole voltage transformer is often harsh, with high temperatures, humidity, and contamination from dust or oil. These conditions can degrade insulation and other electrical components, leading to overheating and eventual failure. Additionally, unstable voltage, frequent switching, and electrical interference from other devices in the system can cause stress on the transformer, leading to burnout.
Overloading
Excessive load on the transformer is another common cause of burnout. When the electrical load surpasses the transformer’s rated capacity, it causes the transformer to overheat. Prolonged overloading stresses the internal components, leading to insulation damage and, eventually, failure. Without proper load management, transformers are more likely to burn out.
Improper Grounding and Voltage Surges
Improper grounding and exposure to voltage surges are often overlooked causes of transformer failure. When a transformer is not properly grounded or subjected to sudden voltage spikes (such as from lightning strikes or system faults), the resulting stress can cause insulation breakdown and other damage, leading to burnout.
Solutions to Prevent Burnout
Enhanced Maintenance Practices
Regular maintenance is crucial to ensuring the longevity of voltage transformers. Implementing a robust inspection routine, including cleaning, tightening connections, and checking for wear and tear, can prevent many issues before they lead to transformer failure. Additionally, maintaining a clean and dry environment around the transformer will reduce the risk of environmental damage, such as corrosion or insulation degradation.
Load Adjustment
To prevent overloading, it is important to monitor and manage the load on each transformer. Balancing the load across the system can prevent individual transformers from being subjected to excessive stress. Solutions include upgrading equipment, adding more transformers, or adjusting the system’s configuration to evenly distribute the load. By ensuring that transformers are not continuously overburdened, their risk of burnout can be significantly reduced.
Purchase High-Quality Transformers
Selecting transformers from reputable manufacturers is crucial for reducing the risk of burnout due to poor internal quality. High-quality transformers with reliable components and solid construction are less likely to experience internal defects that lead to failure. Ensuring that transformers meet industry standards for performance and materials is key to achieving a longer service life and greater reliability.
Proper Grounding and Surge Protection
To safeguard against voltage surges and grounding issues, it is important to implement proper grounding techniques and surge protection. Installing surge protectors and ensuring the transformer is correctly grounded can prevent damage caused by electrical spikes or imbalances in the system. Regularly checking the grounding system and adding surge protection devices where necessary will protect the transformer from these risks.
Conclusion
The frequent failure of 10kV three-phase five-pole voltage transformers is primarily caused by poor quality, environmental factors, overloading, and improper grounding. However, these issues can largely be avoided with proper maintenance, load management, quality assurance, and the installation of grounding and surge protection systems. By addressing these causes and implementing effective solutions, the reliability and lifespan of voltage transformers can be significantly improved, ensuring the stable operation of the power system.
