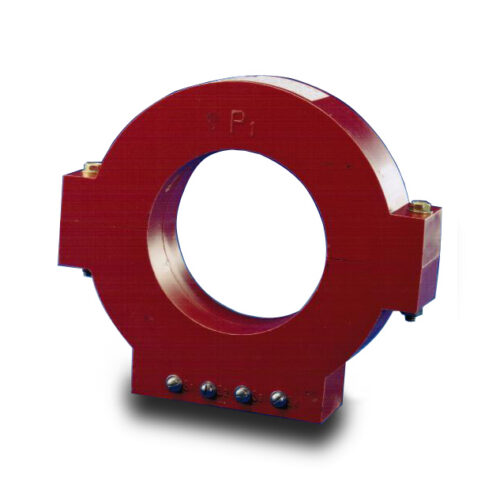

Current Transformer Transient Characteristics and DC Offset Impact on Protection Relays

Executive Summary

Current transformers (CTs) serve as the critical interface between high-voltage power systems and protective relaying equipment. During fault conditions, the transient behavior of fault currents—particularly the DC offset component—poses significant challenges to CT performance and, consequently, to protection system reliability. This document provides a comprehensive analysis of CT transient characteristics, examines the impact of DC offset on protection relay operation, and offers practical guidelines for CT selection and dimensioning.

The presence of DC offset in fault currents can cause CT saturation, leading to distorted secondary currents that may result in protection relay misoperation. Understanding the mechanisms behind transient saturation, the factors influencing DC offset magnitude and decay, and the appropriate CT class selection for different protection applications is essential for power system engineers. This analysis covers the theoretical foundations, practical implications, and engineering methodologies necessary for ensuring reliable protection system performance under transient conditions.

Key findings indicate that proper CT selection requires consideration of the X/R ratio of the protected zone, the remanence characteristics of the CT core, the operating time requirements of the protection scheme, and the specific transient performance class (TPX, TPY, or TPZ) appropriate for the application. Engineering checklists and calculation methods provided herein enable systematic evaluation of CT transient performance.

Transient Mechanism Analysis

Fault Current Transient Components

When a short-circuit fault occurs in a power system, the resulting fault current consists of two distinct components:

• AC Component (Symmetrical): The steady-state alternating current determined by the system voltage and the impedance of the fault path. This component persists throughout the fault duration and is symmetric about the zero axis.
• DC Component (DC Offset): A unidirectional transient component that arises from the sudden change in circuit conditions. The DC offset ensures continuity of current at the instant of fault inception, satisfying the physical constraint that current through an inductor cannot change instantaneously.

The total fault current at any time t after fault inception can be expressed as:

i(t) = I_ac·sin(ωt + α – φ) + I_dc·e^-t/τ

Where:

• I_ac = RMS value of the AC component
• α = Voltage phase angle at fault inception
• φ = Impedance angle of the fault circuit (arctan(X/R))
• I_dc = Initial DC offset magnitude = -I_ac·sin(α – φ)
• τ = DC offset time constant = L/R = X/(ωR)

DC Offset Decay Time Constant

The DC offset component decays exponentially with a time constant τ determined by the X/R ratio of the fault circuit:

τ = X/R = L/R

In high-voltage transmission systems, the X/R ratio typically ranges from 10 to 30, resulting in DC offset time constants of 30 to 100 milliseconds (at 50 Hz) or 25 to 80 milliseconds (at 60 Hz). The worst-case DC offset occurs when a fault is initiated at voltage zero crossing (α = 0), producing a DC component equal in magnitude to the AC peak value.

The asymmetry factor, representing the ratio of peak asymmetrical current to peak symmetrical current, reaches its maximum value of approximately 2.828 at fault inception for purely inductive circuits. This asymmetry gradually diminishes as the DC component decays, typically requiring 3 to 5 time constants to become negligible.

Impact on CT Saturation Behavior

Current transformers operate on the principle of magnetic flux balance between primary and secondary windings. The flux in the CT core is proportional to the time integral of the excitation current. During transient conditions with significant DC offset, the following phenomena occur:

1. Flux Accumulation: The DC component of the primary current produces a unidirectional flux that accumulates in the CT core. Unlike AC flux, which alternates and averages to zero over each cycle, DC flux adds progressively to the core’s magnetic state.
2. Core Saturation: When the total flux (AC + DC) exceeds the saturation flux density of the core material, the CT enters saturation. In saturation, the magnetizing impedance drops dramatically, causing a disproportionate increase in excitation current and corresponding distortion of the secondary current.
3. Remanence Effect: After fault clearance, residual flux (remanence) may remain in the CT core, typically 50-80% of saturation flux for conventional silicon steel cores. If a subsequent fault occurs with polarity aligned to the remanence, saturation can occur much more rapidly.

The time to saturation under DC offset conditions can be estimated using:

t_sat = τ · ln[(K_td · K_ssc · K_rem) / (K_td – 1)]

Where K_td is the transient dimensioning factor, K_ssc is the symmetrical short-circuit current factor, and K_rem accounts for remanence.

DC Offset Impact on Protection

Protection Relay Misoperation Mechanisms

CT saturation caused by DC offset can lead to several types of protection relay misoperation:

• Overcurrent Relays: Saturation reduces the secondary current magnitude, potentially causing under-reach (failure to operate for faults within the protection zone) or delayed operation. In severe cases, the distorted waveform may contain significant harmonics that affect relay measurement algorithms.
• Differential Protection: CT saturation on one side of a differential zone but not the other creates false differential current, potentially causing unwanted tripping for external faults. This is particularly problematic for transformer and busbar differential schemes where CT characteristics may differ between zones.
• Distance Protection: Impedance measurement relies on accurate voltage-to-current ratios. CT saturation distorts the current measurement, causing the apparent impedance to deviate from the true value. This can result in over-reach (tripping for faults beyond the protected zone) or under-reach (failure to detect faults within the zone).
• Directional Elements: Phase angle measurement for directional determination is compromised when CT saturation introduces phase shift errors in the secondary current waveform.

Time-Domain Considerations

The impact of DC offset on protection depends critically on the relationship between the DC offset decay time and the protection operating time:

• High-Speed Protection (< 1 cycle): Protection schemes such as busbar differential or transformer differential with harmonic restraint may operate before significant DC offset decay occurs. These applications require CTs with superior transient performance.
• Medium-Speed Protection (1-5 cycles): Distance protection and line differential schemes fall into this category. DC offset may still be significant during the operating window, requiring careful CT dimensioning.
• Time-Delayed Protection (> 5 cycles): Overcurrent relays with intentional time delays may allow sufficient DC offset decay before operation, reducing transient performance requirements.

Harmonic Content and Digital Relay Processing

Modern numerical relays employ sophisticated algorithms to mitigate CT saturation effects:

• Harmonic Restraint: Differential relays commonly use second harmonic restraint to distinguish between internal faults and CT saturation conditions, as saturation produces significant second harmonic content.
• Waveform Recognition: Advanced algorithms detect saturation by identifying the characteristic “flat-top” waveform distortion and can adapt measurement windows accordingly.
• Sample-Value Comparison: Some relays compare instantaneous sample values to detect saturation onset and temporarily block or restrain operation.

However, reliance on relay algorithms alone is insufficient; proper CT selection remains the primary defense against transient-related misoperation.

CT Selection Guidelines

TPX vs TPY vs TPZ Class Comparison

IEC 61869-2 defines three classes of protection CTs with specified transient performance:

TPX Class: Closed-core CTs with no specified limit on remanence. Suitable for applications where the time between fault clearance and reclosure allows demagnetization, or where the protection scheme is not sensitive to remanence effects. Most economical option but requires careful consideration of remanence in transient dimensioning.

TPY Class: Gapped-core CTs with remanence factor limited to 10%. The air gap reduces effective permeability, limiting remanence while maintaining acceptable AC accuracy. Recommended for high-speed protection schemes where rapid reclosure is possible, such as line differential and busbar protection.

TPZ Class: Larger air gap resulting in negligible remanence but reduced AC accuracy. These CTs effectively transform only the AC component, with the DC component appearing as excitation current. Suitable for specialized applications where DC component measurement is not required.

Application Guidelines by Protection Type

Overcurrent Protection:

• Generally less demanding transient requirements due to intentional time delays
• TPX class typically sufficient for most applications
• Consider TPY for high-speed instantaneous elements or where X/R ratio exceeds 20
• Ensure CT knee-point voltage exceeds maximum fault burden voltage

Differential Protection:

• Critical application requiring careful CT matching and transient consideration
• TPY class recommended for transformer, busbar, and generator differential
• Match CT characteristics (ratio, class, burden) on all zones
• Consider through-fault current magnitude and external fault saturation
• Implement harmonic restraint as backup to proper CT selection

Distance Protection:

• Moderate transient requirements depending on zone and operating time
• TPX acceptable for Zone 2 and Zone 3 (time-delayed)
• TPY recommended for Zone 1 (high-speed) especially on lines with high X/R
• Verify CT performance for close-in faults with maximum DC offset

Line Current Differential:

• High-speed operation demands excellent transient performance
• TPY class strongly recommended
• Ensure matched CT characteristics at both line terminals
• Consider communication channel delay in transient coordination

Transient Dimensioning Calculation Method

The required transient dimensioning factor K_td can be calculated using:

K_td = [ω·τ·(e^-t/τ – e^-t/τ_ct) + sin(ωt)] / [sin(ωt) – (ω·τ_ct)·(e^-t/τ_ct – e^-t/τ)]

For practical engineering purposes, simplified methods are often employed:

K_td = 1 + (X/R) · (t_op/τ)

Where t_op is the protection operating time. The CT specification must satisfy:

E_al ≥ K_td · K_ssc · (R_ct + R_b) · I_sn

Where E_al is the equivalent accuracy limit voltage, K_ssc is the symmetrical short-circuit factor, R_ct is CT secondary resistance, R_b is burden resistance, and I_sn is rated secondary current.

Engineering Checklist

Use this checklist to systematically evaluate CT transient performance for protection applications:

System Data Collection

• ☐ Maximum symmetrical fault current at CT location (kA)
• ☐ System X/R ratio at fault location
• ☐ DC offset time constant τ = X/(ωR)
• ☐ Protection operating time requirement (cycles or ms)
• ☐ CT secondary burden (VA and power factor)
• ☐ CT secondary winding resistance
• ☐ Possibility of rapid reclosure (time between faults)

CT Specification Verification

• ☐ CT ratio selected for maximum load and fault current
• ☐ CT accuracy class appropriate for protection type
• ☐ Transient class (TPX/TPY/TPZ) matches application requirements
• ☐ Knee-point voltage (for class X) or E_al (for TP class) sufficient
• ☐ Remanence factor considered for TPX applications
• ☐ CT saturation time exceeds protection operating time

Transient Performance Calculation

• ☐ Calculate required K_td based on X/R and t_op
• ☐ Verify CT can handle worst-case DC offset (fault at voltage zero)
• ☐ Check remanence impact for successive faults
• ☐ Confirm burden does not exceed CT rating
• ☐ Validate using manufacturer’s transient performance curves

Protection Coordination

• ☐ CT characteristics matched for differential schemes
• ☐ Harmonic restraint settings coordinated with CT transient behavior
• ☐ Time-delay settings allow for DC offset decay where appropriate
• ☐ Backup protection considered for CT saturation scenarios

Installation and Commissioning

• ☐ CT polarity verified and marked correctly
• ☐ Secondary wiring resistance measured and documented
• ☐ Burden calculation includes all connected devices and wiring
• ☐ Demagnetization performed after high-current testing
• ☐ CT ratio and polarity tests completed

Standards Reference

The following international and national standards provide guidance on CT selection, specification, and application for protection systems:

IEC Standards

• IEC 61869-2: Instrument transformers – Part 2: Additional requirements for current transformers. Defines accuracy classes, transient performance classes (TPX, TPY, TPZ), and testing requirements.
• IEC 60044-1: (Superseded by IEC 61869-2) Historical standard still referenced in existing installations.
• IEC 60255: Measuring relays and protection equipment. Covers relay input requirements and compatibility with CT outputs.
• IEC 61850: Communication networks and systems for power utility automation. Includes requirements for merged units and digital CT interfaces.

IEEE Standards

• IEEE C57.13: Standard Requirements for Instrument Transformers. North American standard defining accuracy classes (C, K, T, H) and relay accuracy classes.
• IEEE C37.110: Guide for the Application of Current Transformers Used for Protective Relaying Purposes. Comprehensive guidance on CT application, saturation analysis, and selection criteria.
• IEEE C37.91: Guide for Protecting Power Transformers. Includes CT requirements for transformer differential protection.

National and Regional Standards

• GB/T 20840 (China): Instrument transformers, aligned with IEC 61869 series.
• BS EN 61869 (UK): European adoption of IEC standards.
• AREVA/Alstom Guidelines: Utility-specific standards often provide additional requirements for critical applications.

Technical References

• CIGRE Technical Brochures: Various publications on CT application and protection system performance.
• EPRI Reports: Research on CT saturation effects and mitigation techniques.
• Manufacturer Application Guides: ABB, Siemens, GE, and other manufacturers provide detailed application notes and calculation tools.

Key Standard Requirements Summary

Engineers should consult the latest editions of applicable standards and verify compliance with local regulatory requirements when specifying CTs for protection applications. Standards continue to evolve, particularly in areas of digital instrumentation and smart grid integration.
