Overview

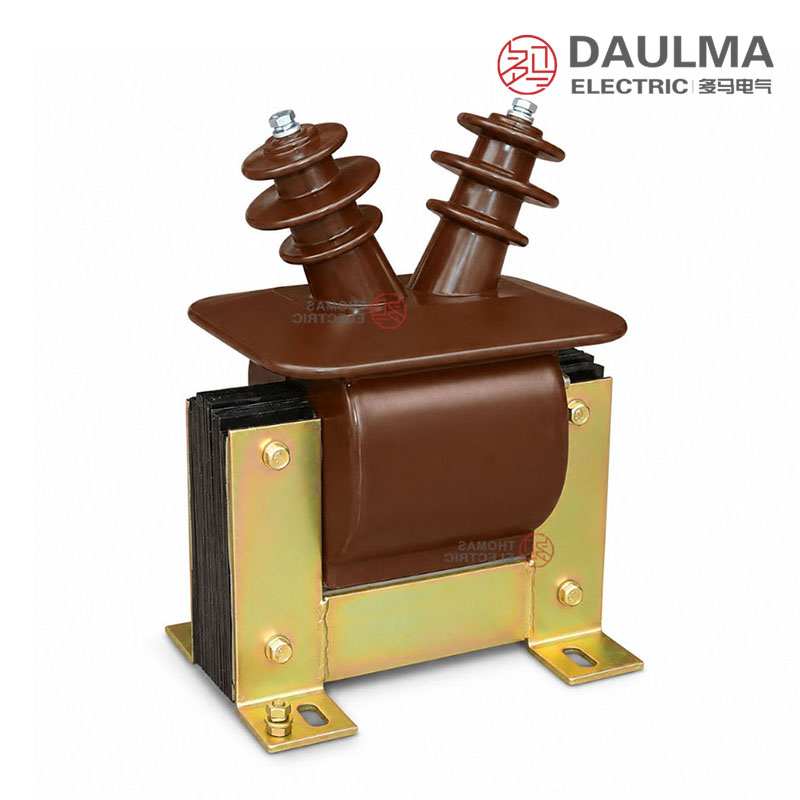

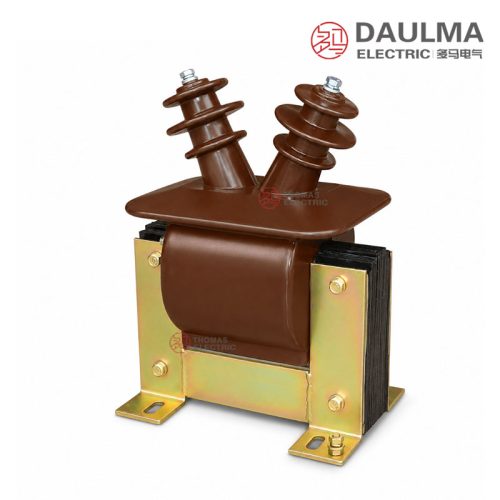

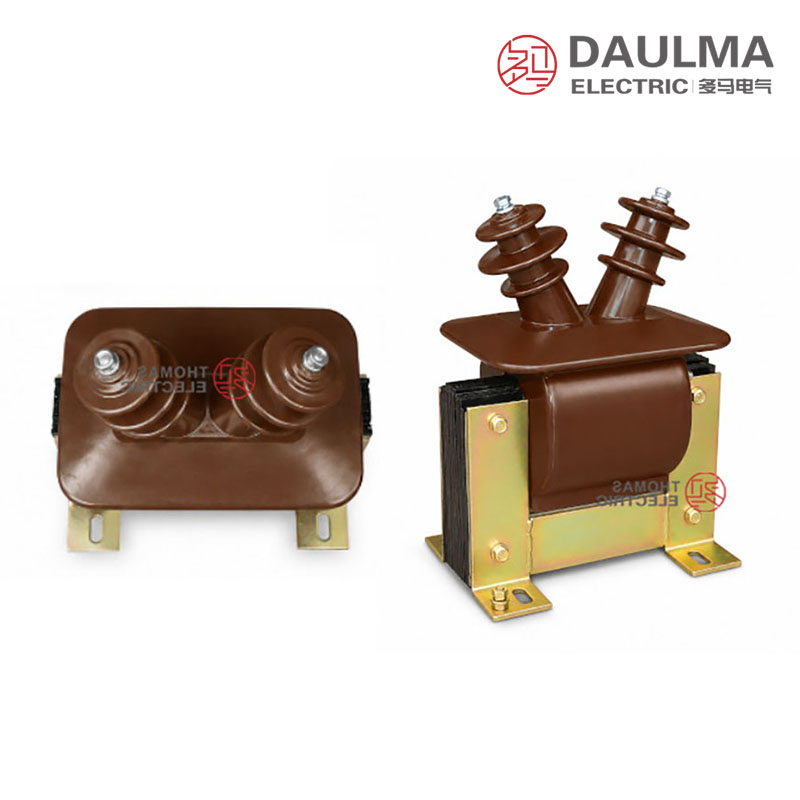

The JDZC6-10Q is a single-phase outdoor epoxy cast-resin voltage transformer rated for 12kV medium-voltage distribution systems. It features a fully encapsulated epoxy resin insulation system, providing reliable performance in harsh outdoor environments without the need for oil or gas insulation.
It delivers a 100V secondary output for metering and monitoring circuits and a 220V output for auxiliary power applications. Designed for use in outdoor metering units and distribution equipment, the transformer complies with standard accuracy requirements for voltage measurement and auxiliary supply in 12kV networks.
Key Ratings Snapshot
| Parameter | Rating |
|---|---|
| System Voltage | 12kV |
| Primary Voltage | 10000V |
| Secondary Voltage (Metering) | 100V |
| Secondary Voltage (Auxiliary) | 220V |
| Insulation Level | 12/40/75kV (Um/LI/AC) |
| Phase Configuration | Single-phase |
| Insulation Type | Epoxy cast-resin |
| Application Environment | Outdoor |
Construction
The JDZC6-10Q employs an outdoor-rated epoxy cast-resin insulation system, fully encapsulating the core and windings to ensure protection against moisture, pollution, and UV exposure. The primary and secondary windings are embedded within high-quality epoxy resin, providing excellent dielectric strength and mechanical stability. This solid-insulation construction eliminates the risk of leakage or fire associated with oil-filled designs and requires no maintenance during service life. The compact housing is designed for direct outdoor mounting on poles or structures in medium-voltage distribution networks.
Technical Parameters
Service Conditions
- Ambient temperature: -5°C to +40°C
- Installation environment: Outdoor
Technical Parameters
The JDZC6-10Q is an outdoor epoxy cast-resin voltage transformer rated for 12kV systems, featuring dual secondary outputs for metering/monitoring and auxiliary power supply. It operates within an ambient temperature range of -5°C to +40°C and is designed for standard outdoor installation conditions.
| Rated Voltage(kV) |
Accuracy class / Rated output (VA) |
Max. output (VA) |
||||
|---|---|---|---|---|---|---|
| 1a-1b (Metering or monitoring) |
2a-2b (Power supply) |
|||||
| Output voltage(V) |
Accuracy class |
Rated capacity(VA) |
Output voltage(V) |
Rated capacity(VA) |
||
| 10000 | 100 | 0.2/0.5 | 30/50 | 220 | 500 | 1000 |
Installation & Wiring

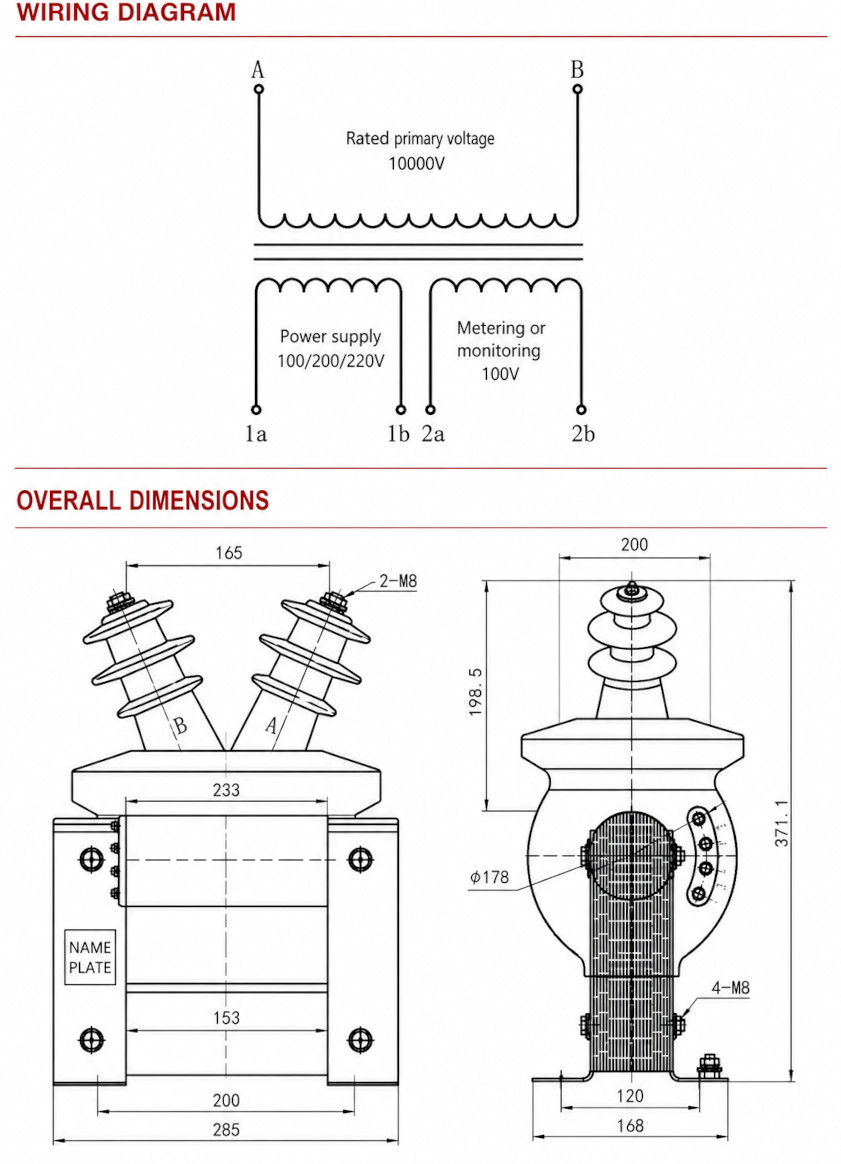

Installation Diagram
The JDZC6-10Q outdoor epoxy cast-resin voltage transformer must be installed in accordance with the approved outline drawing, wiring diagram, and outdoor installation layout. Mount the unit securely using the four M8 mounting holes on the metal base, ensuring proper alignment and structural support. Maintain adequate insulation clearance around the unit and verify correct terminal connections before energizing.
Selection & FAQs
Selection Guide
- Distinguish ratio from equipment class: select this model for a 10000V primary; 12kV describes the equipment class and insulation level, not a confirmed 12000V winding.
- Select metering accuracy: use the 100V 2a–2b winding at class 0.2/30VA or class 0.5/50VA after calculating instruments and lead voltage drop.
- Check auxiliary demand: keep the 220V 1a–1b load within 500VA and verify inrush, duty, power factor and voltage regulation for the connected device.
- Assess the outdoor site: obtain verified creepage, UV, pollution, condensation, altitude, ingress and low-temperature data because only −5°C to +40°C is published.
- Coordinate installation protection: approve the 12/40/75kV level, clearances, four-M8 support, surge protection, secondary fuses or MCBs, protective earth and terminal sealing.
Frequently Asked Questions
Q1: Which accuracy class should I select for the metering secondary winding?
Choose either 0.2 class for 30VA or 0.5 class for 50VA. These are mutually exclusive options for the 1a-1b output. Specify your exact requirement during ordering.
Q2: What are the ambient temperature limits for outdoor installation?
The transformer operates safely in outdoor environments between -5°C and +40°C. It features an epoxy cast-resin design for standard outdoor conditions. Contact us for extreme climate specifications.
Q3: How many secondary outputs does this voltage transformer provide?
It features dual secondary outputs for versatile applications. The 1a-1b winding provides 100V for metering, while the 2a-2b winding delivers 220V for auxiliary power. Maximum output capacity is 1000VA.
Q4: Can this 10kV transformer be applied on 12kV systems?
Yes, it is fully rated for 12kV systems. The JDZC6-10Q is designed with a 10kV rated voltage and 12kV highest system voltage capability. Confirm your specific system parameters with our engineering team.
Q5: What factory tests are performed before shipment?
Standard routine tests are conducted prior to dispatch. Specific type tests or special customer requirements are subject to confirmation. Please provide your detailed testing specifications in the inquiry.
Q6: Can the rated output capacity be customized beyond 1000VA?
Customization is possible if your data exceeds standard scopes. The maximum standard output is 1000VA. Contact our sales team to negotiate specific requirements for your project.
Q7: What type of equipment is the JDZC6-10Q classified as?
It is classified as an outdoor epoxy cast-resin voltage transformer. It is primarily used in 10kV and 12kV distribution networks for metering and monitoring. The unit also supplies auxiliary power to secondary circuits.
