Overview

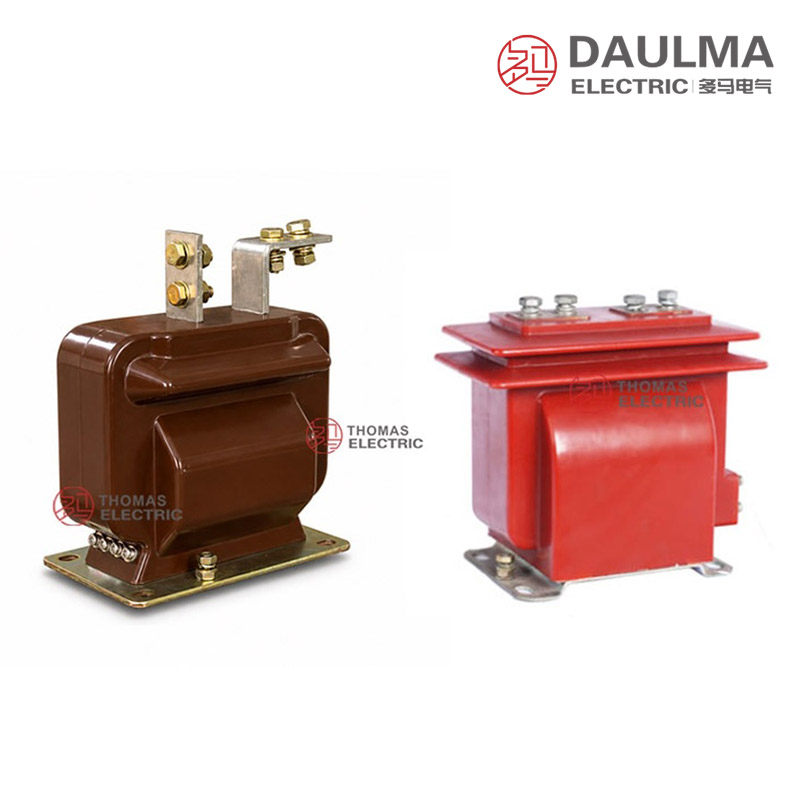

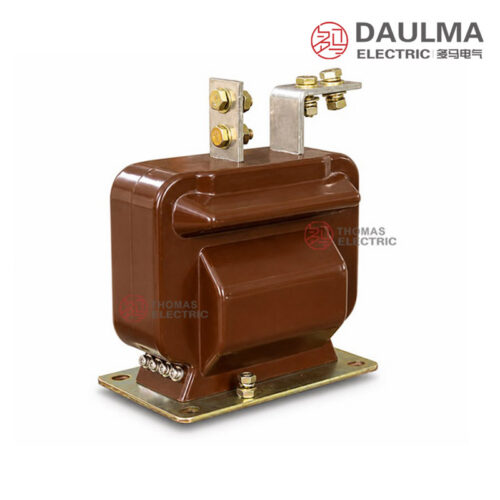

The LZJC-12G / LZJC-12Q is an indoor single-phase epoxy cast-resin current transformer designed for 11kV and 12kV class medium-voltage switchgear. It features a fully enclosed support-type structure with primary and secondary windings and the magnetic core encapsulated in epoxy resin, providing robust insulation and mechanical stability.
Suitable for IEC-based 12kV systems, it supports metering accuracy classes of 0.2S, 0.2, and 0.5, and protection classes such as 10P10 and 10P15. The CT is used in current measurement, energy metering, relay protection, feeder monitoring, and SCADA signal input within indoor AC power systems operating at 50Hz or 60Hz.
Key Ratings Snapshot
| Parameter | Rating |
|---|---|
| Voltage class | 11kV / 12kV |
| Rated insulation level | 12/42/75kV |
| Rated frequency | 50Hz (60Hz on request) |
| Rated secondary current | 5A or 1A |
| Rated primary current | 5A to 1000A |
| Metering accuracy | 0.2S, 0.2, 0.5 |
| Protection accuracy | 10P10, 10P15 |
| Insulation material | Epoxy cast-resin |
| Construction type | Support-type, fully enclosed |
| Application environment | Indoor, humid or polluted conditions |
| Core configuration | Metering, protection, or combined |
| Typical use | Switchgear, metering cabinets, feeder panels |
Model Designation
- L: Current transformer
- Z: Indoor support / pillar type structure
- J: Reinforced design or enhanced structural reference
- C: Cast-resin insulated, fully enclosed structure
- 12: 12kV voltage class for 11kV and 12kV class indoor systems
- G: Structural / installation variant code; final meaning follows factory drawing
- Q: Reinforced / installation variant code; final meaning follows factory drawing

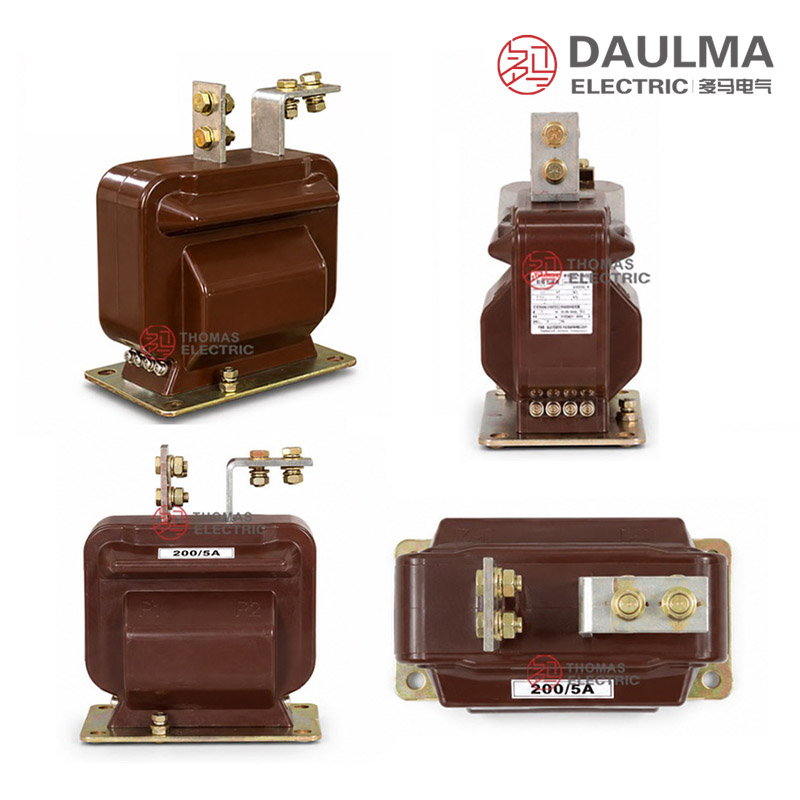

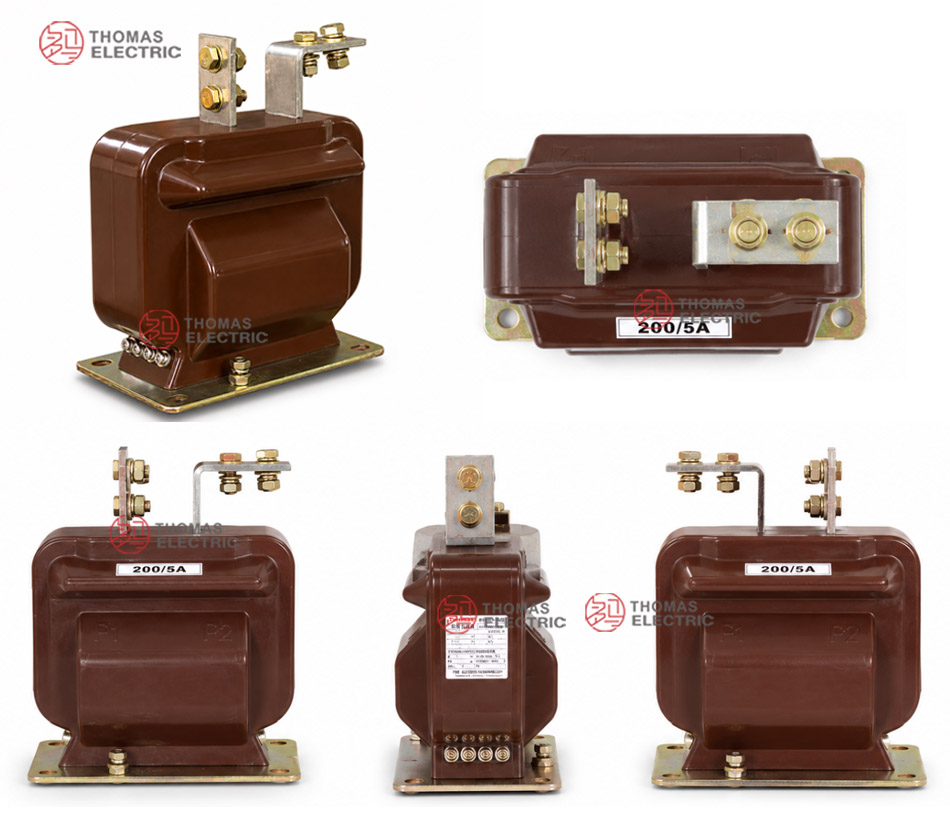

Construction

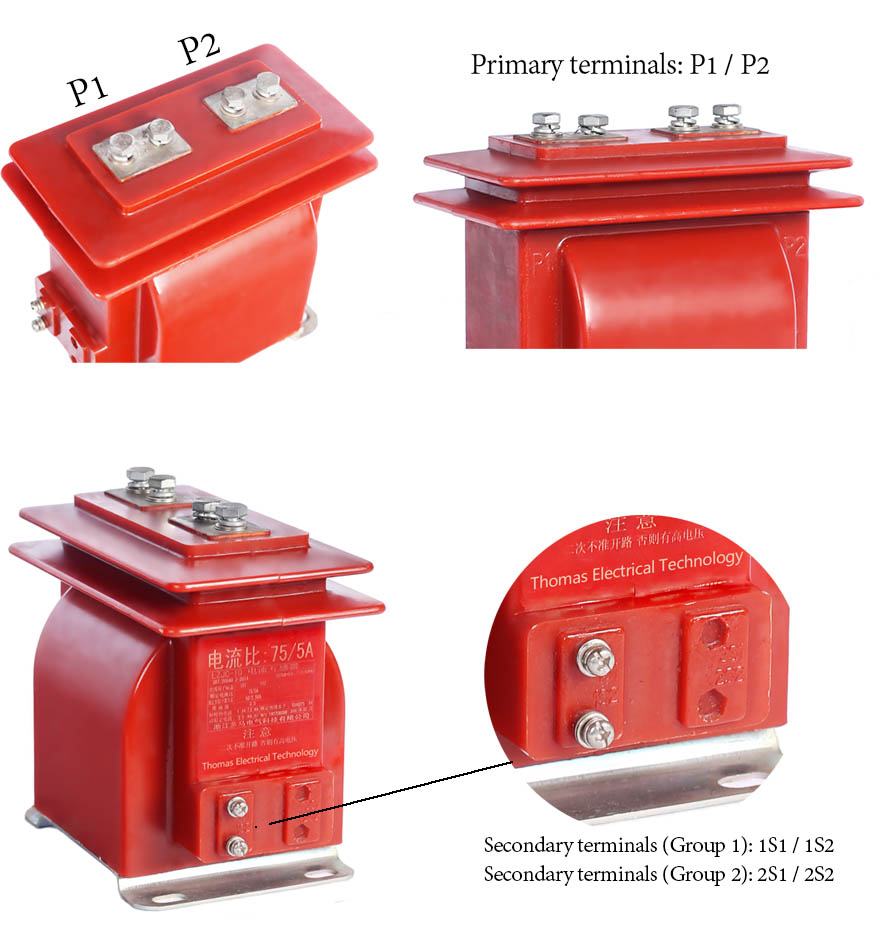

The LZJC-12G / LZJC-12Q features a compact, fully enclosed support-type body made of epoxy cast-resin. The annular magnetic core, along with both primary and secondary windings, is completely embedded within the resin matrix, ensuring excellent dielectric strength and long-term operational stability. An external groove design enhances surface creepage distance, improving insulation performance in humid or contaminated indoor environments. Primary terminals are located on the upper side for direct busbar or bolted connection, while secondary terminals are arranged on the lower or side area depending on the specific variant and project drawing. This construction delivers high mechanical strength, clear terminal access, and reliable isolation between medium-voltage primary and low-voltage secondary circuits.
Technical Parameters
Service Conditions
- Installation location: indoor medium-voltage switchgear
- System voltage: 12kV class networks
- Rated frequency: 50Hz
- Ambient temperature: -5°C to +40°C
- Installation environment: should be free from severe vibration, conductive dust, corrosive gas, explosive medium, heavy pollution and abnormal condensation.
Technical Parameters
The LZJC-12G/LZJC-12Q is an indoor cast-resin current transformer designed for 12kV class systems. It features epoxy resin insulation and complies with IEC and GB standards. Primary current ranges from 5A to 1000A.
| Rated primary current (A) |
Accuracy classed combination |
Rated Output (VA) |
Short-time thermal current (kA/1s) |
Rated dynamic current (kA) |
|||
|---|---|---|---|---|---|---|---|
| 0.2S | 0.2/0.5 | 5P | 10P | ||||
| 5~400 | 0.2/10P 0.2S/10P 0.5/10P |
10 | 10 | 15 | 15 | 60×I1n | 150×I1n |
| 600 | 50×I1n | 120×I1n | |||||
| 800 | 50×I1n | 100×I1n | |||||
| 1000 | 45×I1n | 90×I1n | |||||
Installation & Wiring
Outline Dimensions

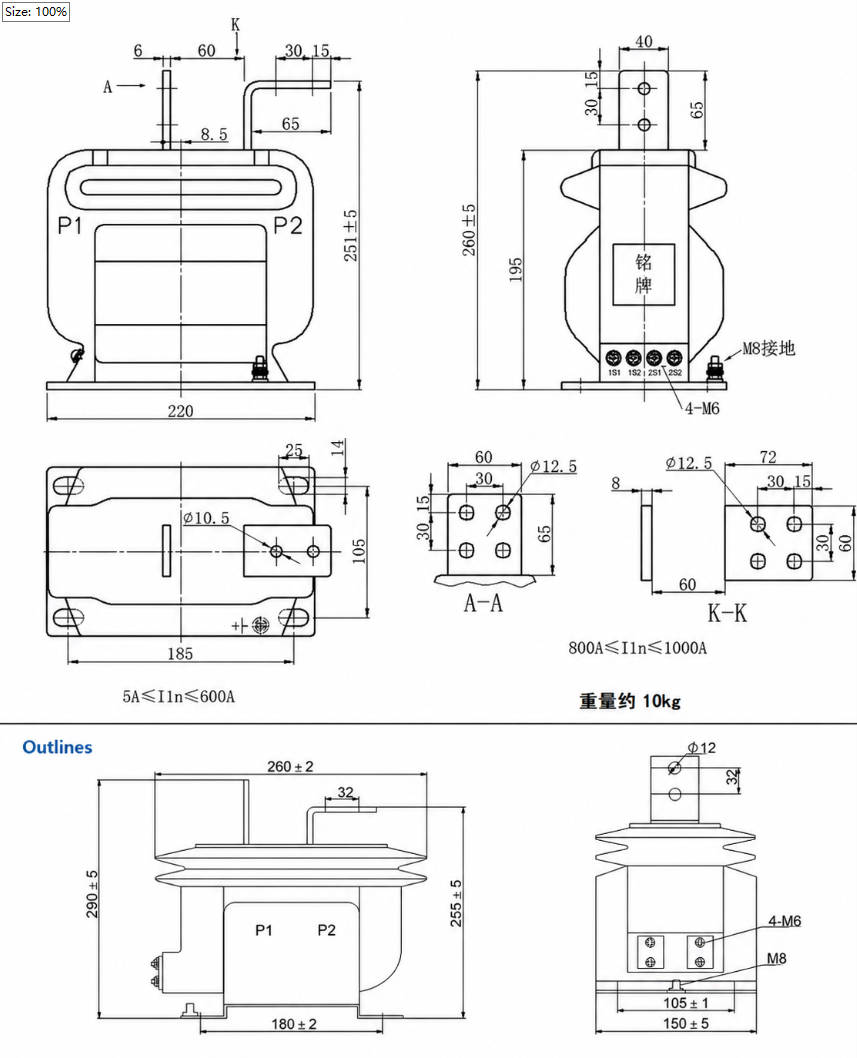

The outline dimensions define the physical envelope, primary terminal spacing, base mounting hole positions, and secondary terminal layout for both LZJC-12G and LZJC-12Q variants. These dimensions must be verified against the switchgear cabinet layout to ensure proper fit, clearance, and accessibility.
Selection & FAQs
Selection Guide
- Select LZJC-12G or LZJC-12Q from the switchgear mounting, terminal orientation and approved outline; the suffix is structural, not an electrical rating.
- Choose a 5A–1000A primary ratio from load, metering range and protection study, with custom ratios by technical agreement.
- Specify 1A or 5A and pair 0.2S/0.2/0.5 metering with 10P10 or 10P15 protection, including any third core.
- Calculate each burden at cosφ 0.8 where applicable and verify 10VA–20VA output plus ratio-specific Ith/Idyn.
- Confirm 12/42/75kV insulation, grooved creepage, ≤1000m altitude, +55°C duty, P1/P2 terminals, mounting and one-point grounding.
